Applicability

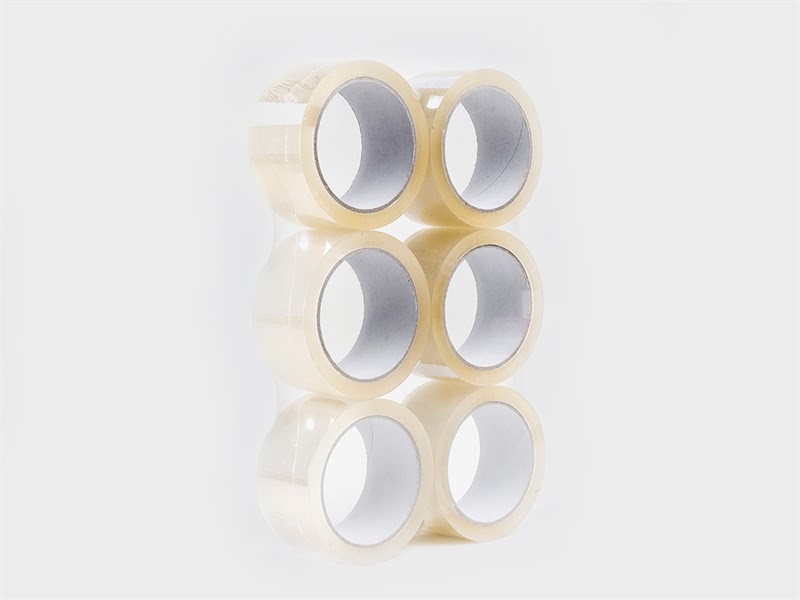

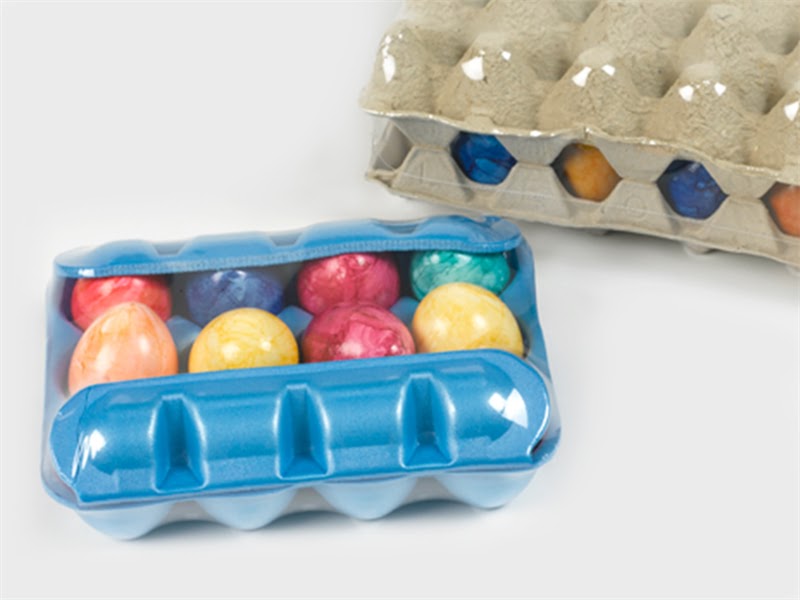

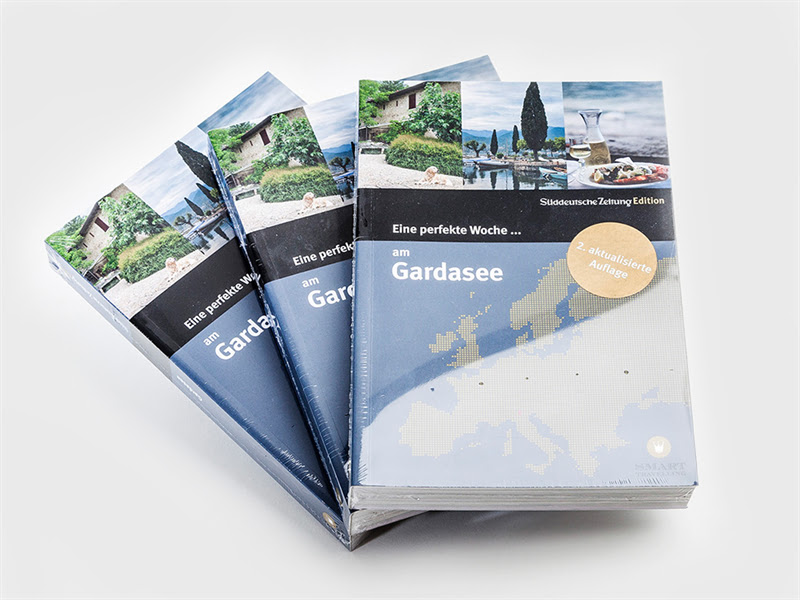

Single and group products of medicine, food, drinking, stationery, printings, cosmetic, electric products, toys, auto parts, tableware, etc.
Pesticide bottles, thermal sensitive paper rolls, cash register paper rolls in group.
|
MODEL
|
RL-400
|
|
Sealing Type
|
L Type Film Sealing Machine
|
|
Installed Power
|
220V; 50-60HZ; 1Phase
|
|
Packing Capacity
|
15-35 packs per minute (depends on product size)
|
|
Sealing Height
|
120MM
|
|
Packing Width
|
350MM
|
|
Product Size
|
Width+Height≤400mm; Length+Height≤480mm
|
|
Film Type
|
Center Folded POF Film
|
|
Max Film Roll Size
|
530MM (Width) X 280MM (Outer Diameter)
|
|
Power Consumption
|
2.5 KW
|
|
Working Height
|
780-850 MM
|
|
Air Pressure
|
0.5MPA (5 BAR)
|
|
Sealing Knife
|
Special Durable Alloyed Sealing Knife with Anti-Stick Teflon Coats
|
|
Machine Material
|
Carbon Steel
|
|
Sealing Machine Dimensions
|
1760 X 940 X 1580 MM
|
|
Sealing Machine Weight
|
340KGS
|
|
MODEL
|
RT-4525
|
|
Installed Power
|
380V; 50-60HZ; 3Phase
|
|
Oven Size
|
1500MM (L), Entrance 450(W) X 250(H) MM
|
|
Conveyor Speed
|
Variable
|
|
Conveyor
|
Chains with Rotating Silicon Coated Rods/ Mesh Belt Conveyor
|
|
Rated Power Consumption
|
12 KW
|
|
Working Height
|
780 - 850 MM
|
|
Machine Material
|
Carbon Steel
|
|
Tunnel Machine Dimensions
|
1800 X 700 X 1300 MM
|
|
Tunnel Weight
|
318KGS
|

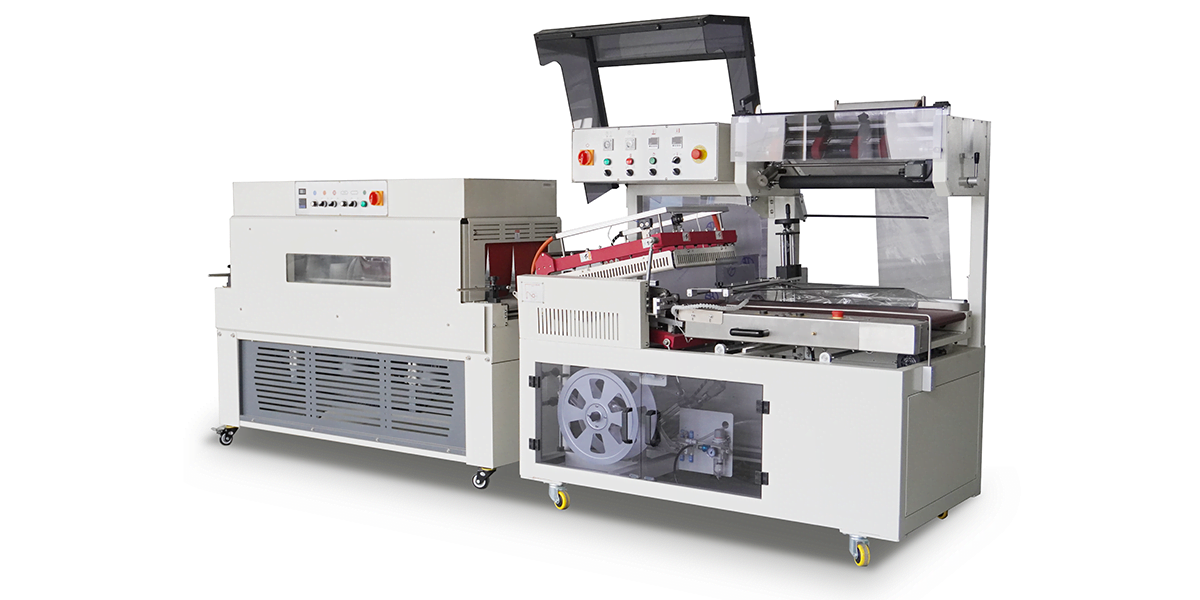

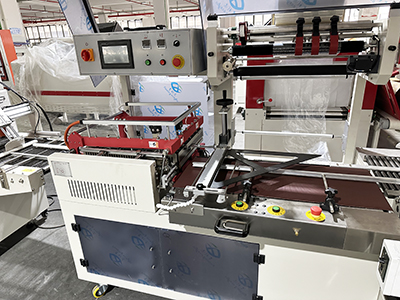

Part 4 Automatic Film Packing Machine
|
|
|
|
Fully automatic integration: Automatic feeding, film feeding, sealing, cutting, shrinking and discharging, realizing one-key continuous production with high efficiency and labor saving.

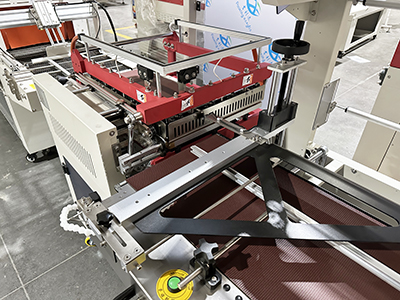

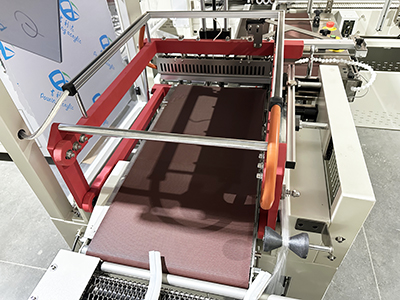

Beautiful & firm sealing: L-bar sealing cutter provides neat sealing, no film sticking, no scorching, no breaking, making the package delicate and high-grade.
Perfect shrinking effect: Constant temperature hot air circulation ensures even and smooth shrinkage without wrinkles or bubbles, effectively damp-proof and dust-proof.
Wide application: Suitable for various regular products and multi-piece combination packs, compatible with POF heat shrink films.
Easy operation & stable performance: Convenient adjustment, reliable running, low failure rate, ideal for long-term mass production.
|

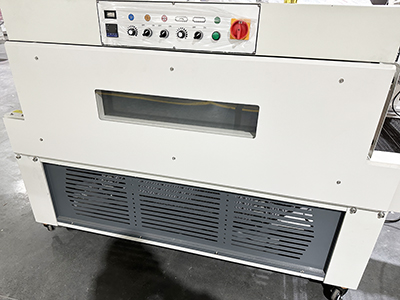

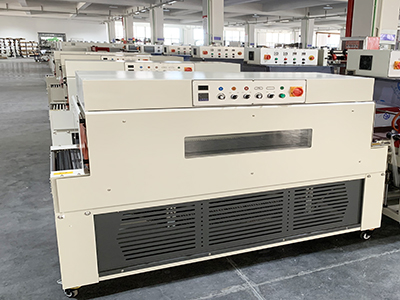

Part 4 Automatic Shrink Tunnel Machine
|
|
|
|
The shrink tunnel adopts high-efficiency insulation structure with good heat preservation, effectively locking heat and saving energy and power.

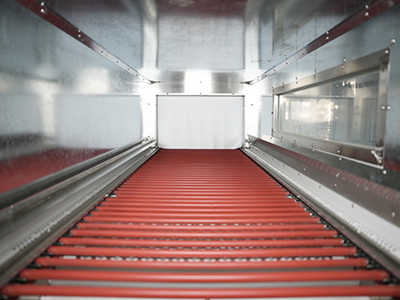

Built-in uniform hot air circulation ensures stable and even heating, making the film shrink smooth and tight, without wrinkles, bubbles or damage to products.
|
