Applicability

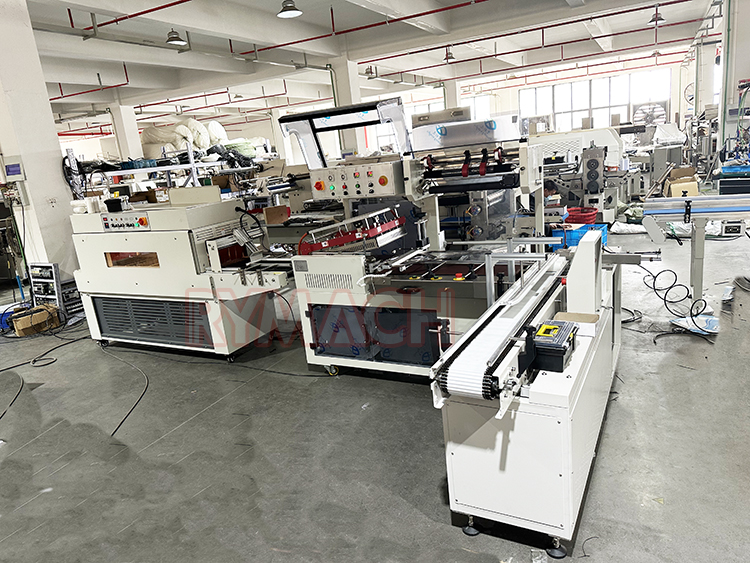

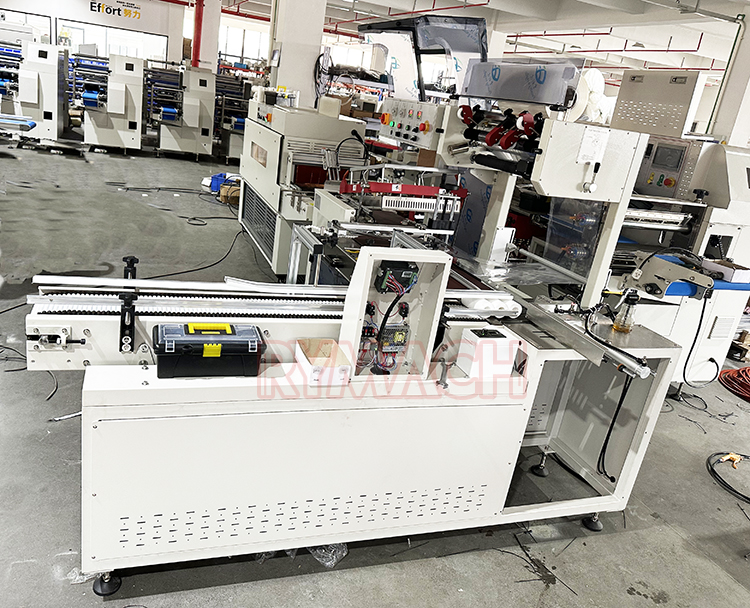

This machine is specially designed for thermal paper packaging.It can neatly pack multiple rolls in multiple rows in one time, with high efficiency and regular arrangement. The finished products are tight, tidy and attractive.
Adopting precise temperature control and uniform hot air circulation, the shrinking process is gentle and stable, effectively preventing thermal paper from blackening, yellowing or burning.The packaging surface is smooth without wrinkles.
Stable operation and easy operation, suitable for mass automatic production of thermal paper.It greatly improves product appearance, protection level and delivery efficiency.
|
MODEL
|
RL-400
|
|
Sealing Type
|
L Type Film Sealing Machine
|
|
Installed Power
|
220V; 50-60HZ; 1Phase
|
|
Packing Capacity
|
15-35 packs per minute (depends on product size)
|
|
Sealing Height
|
120MM
|
|
Packing Width
|
350MM
|
|
Product Size
|
Width+Height≤400mm; Length+Height≤480mm
|
|
Film Type
|
Center Folded POF Film
|
|
Max Film Roll Size
|
530MM (Width) X 280MM (Outer Diameter)
|
|
Power Consumption
|
2.5 KW
|
|
Working Height
|
780-850 MM
|
|
Air Pressure
|
0.5MPA (5 BAR)
|
|
Sealing Knife
|
Special Durable Alloyed Sealing Knife with Anti-Stick Teflon Coats
|
|
Machine Material
|
Carbon Steel
|
|
Sealing Machine Dimensions
|
1760 X 940 X 1580 MM
|
|
Sealing Machine Weight
|
340KGS
|
|
MODEL
|
RT-4525
|
|
Installed Power
|
380V; 50-60HZ; 3Phase
|
|
Oven Size
|
1500MM (L), Entrance 450(W) X 250(H) MM
|
|
Conveyor Speed
|
Variable
|
|
Conveyor
|
Chains with Rotating Silicon Coated Rods/ Mesh Belt Conveyor
|
|
Rated Power Consumption
|
12 KW
|
|
Working Height
|
780 - 850 MM
|
|
Machine Material
|
Carbon Steel
|
|
Tunnel Machine Dimensions
|
1800 X 700 X 1300 MM
|
|
Tunnel Weight
|
318KGS
|

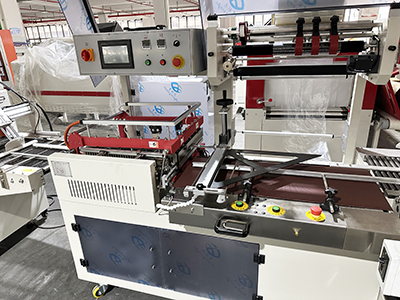

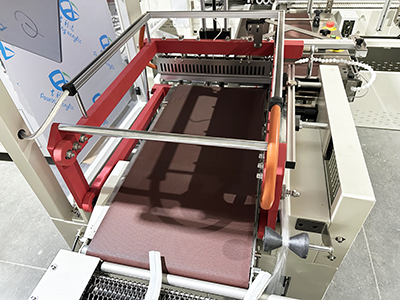

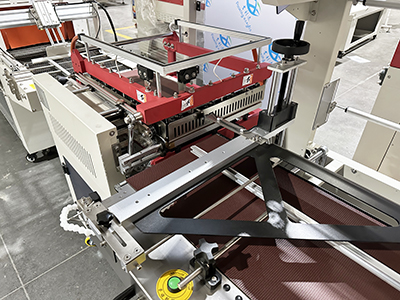

Part 4 Automatic Film Packing Machine
|
|
|
|
This machine is specially designed for thermal paper packaging.It can neatly pack multiple rolls in multiple rows in one time, with high efficiency and regular arrangement. The finished products are tight, tidy and attractive.
Adopting precise temperature control and uniform hot air circulation, the shrinking process is gentle and stable, effectively preventing thermal paper from blackening, yellowing or burning.The packaging surface is smooth without wrinkles.
Stable operation and easy operation, suitable for mass automatic production of thermal paper.It greatly improves product appearance, protection level and delivery efficiency.
|

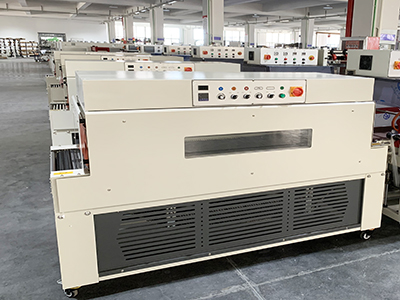

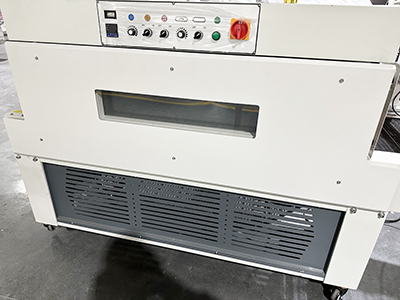

Part 4 Automatic Shrink Tunnel Machine
|
|
|
|

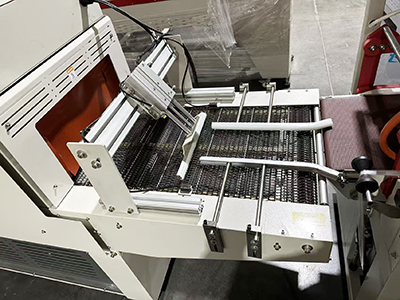

The shrink tunnel is equipped with a cylinder-driven arranging device at the inlet, which automatically aligns and organizes products before shrinking, ensuring stable feeding and neat, consistent packaging.
It adopts a high-quality Teflon mesh belt, which is heat-resistant, non-sticky, and runs smoothly. This ensures even heating, making the film shrink flat and wrinkle-free.
With uniform hot air circulation and stable temperature control, the machine provides reliable performance and long service life, perfect for long-time automatic production.
|
